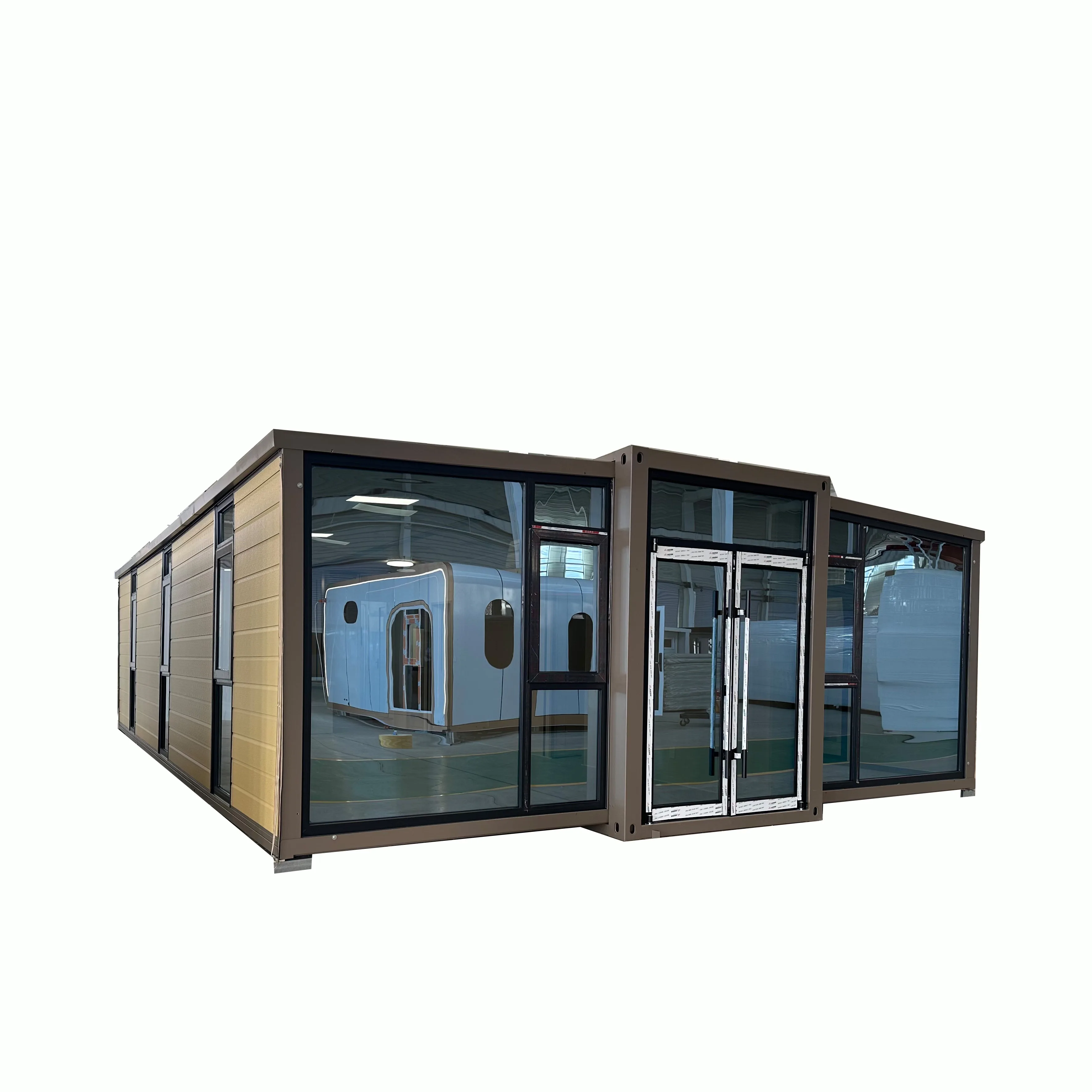

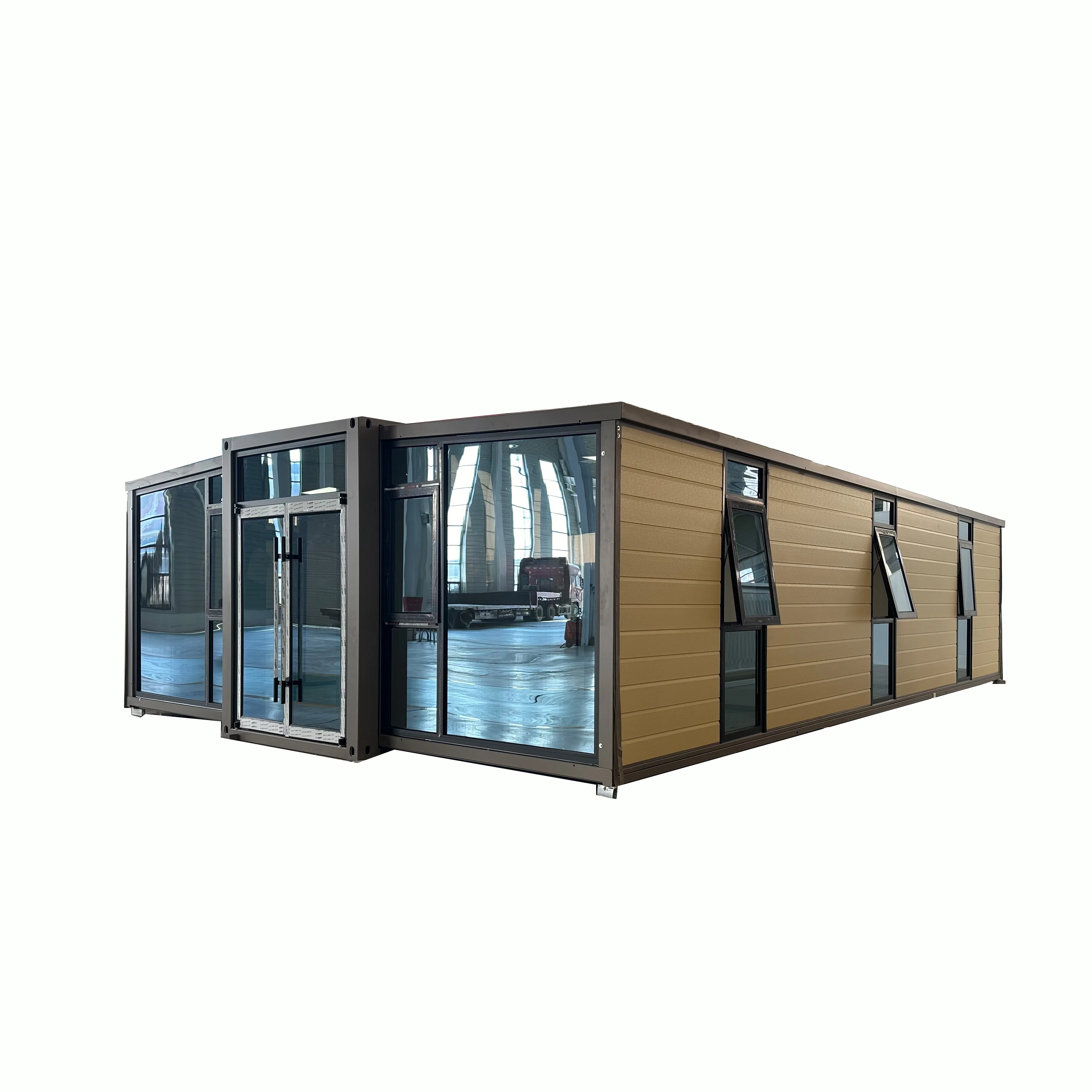

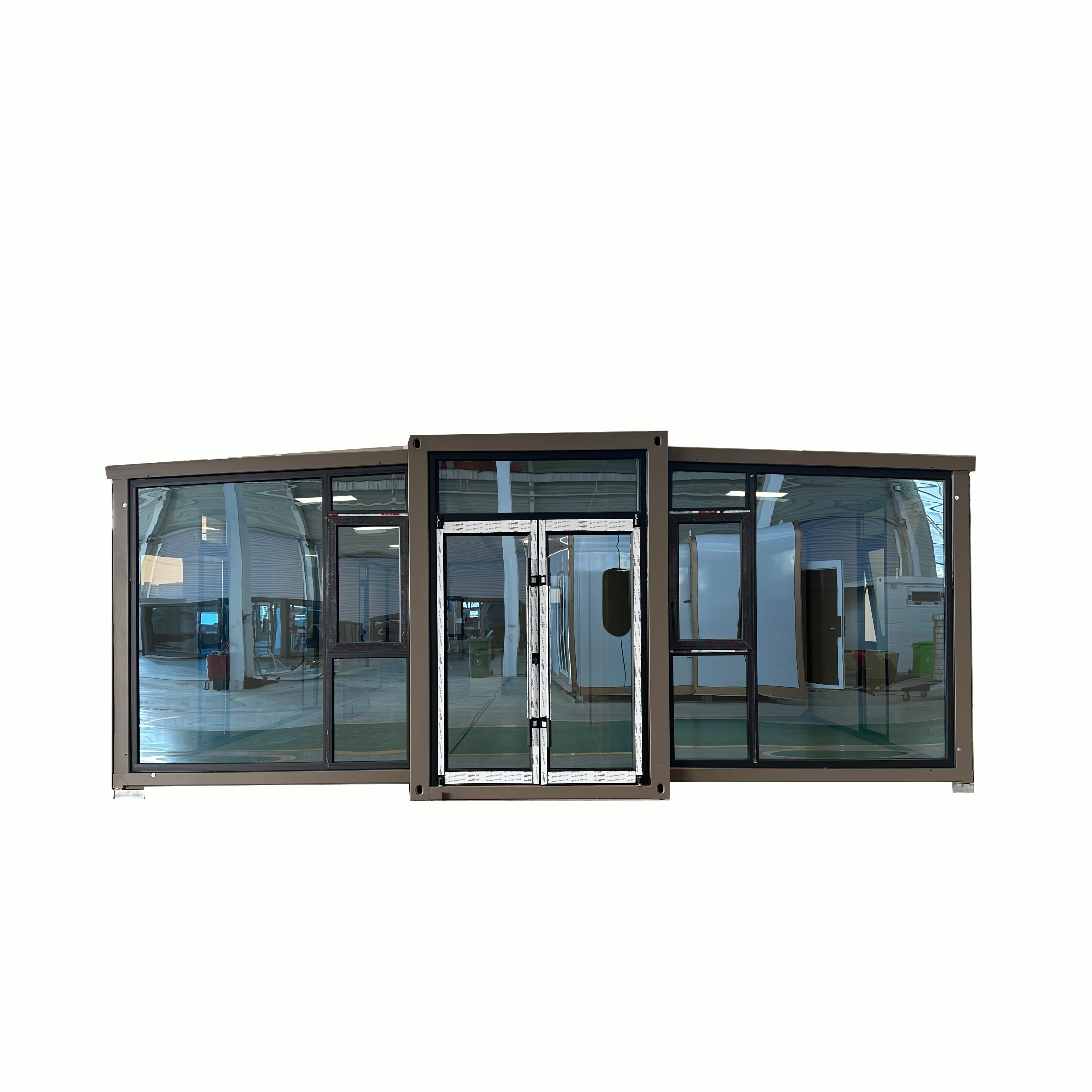

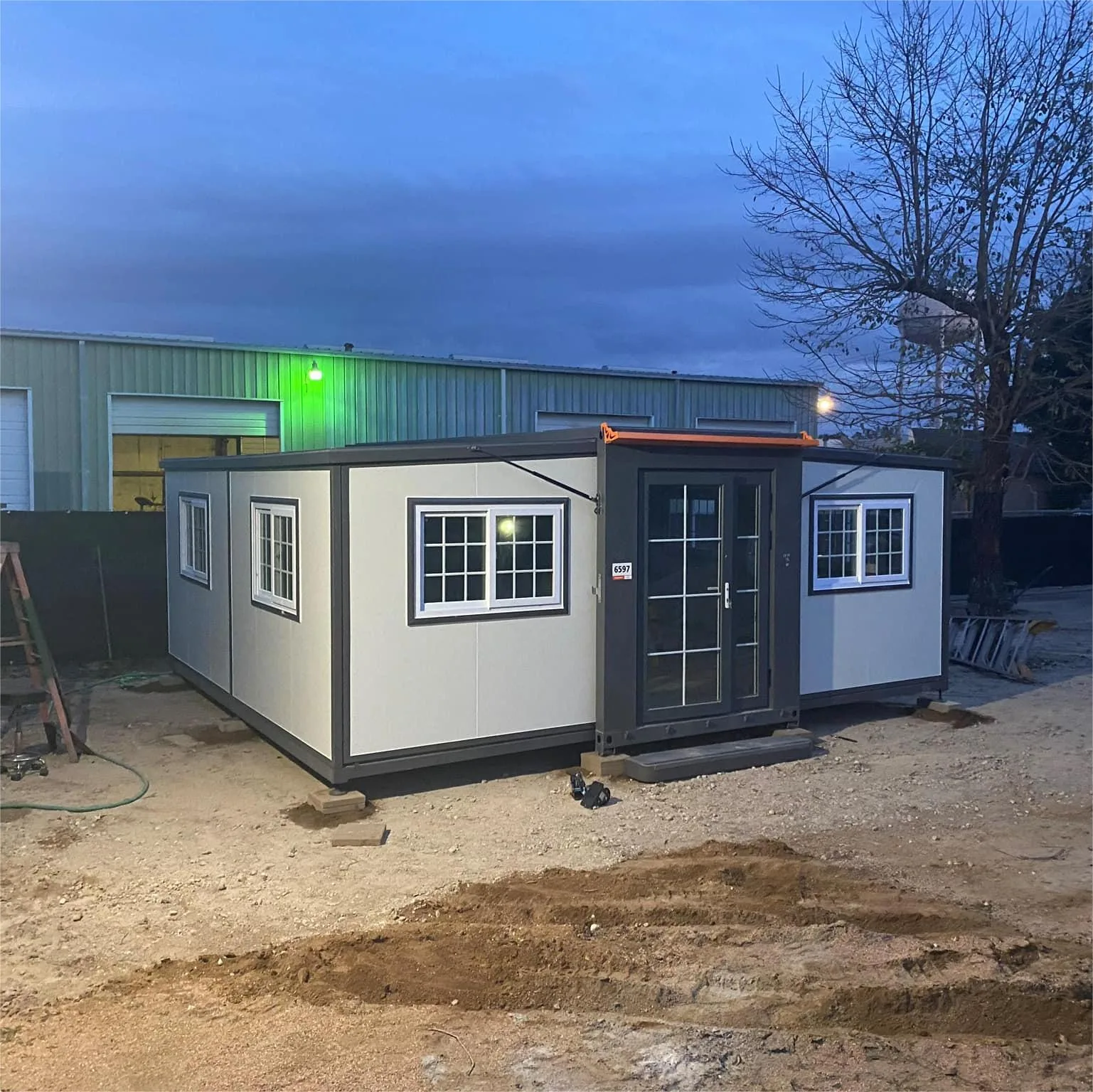

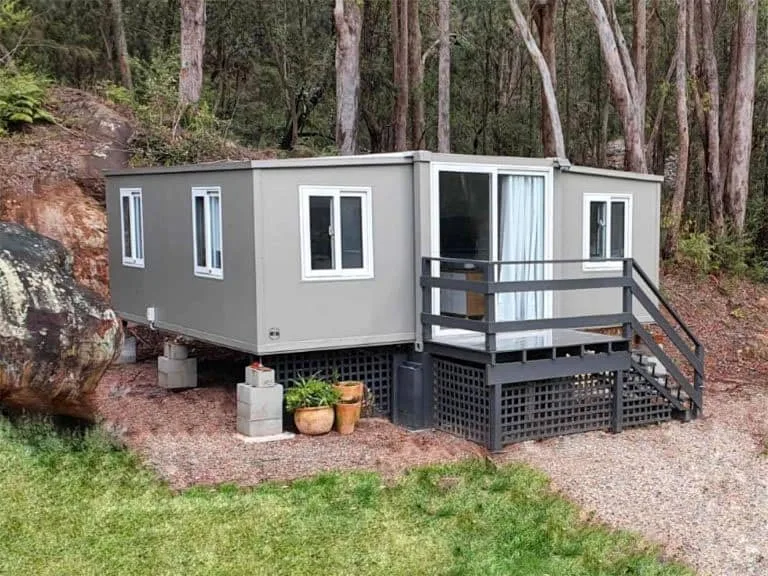

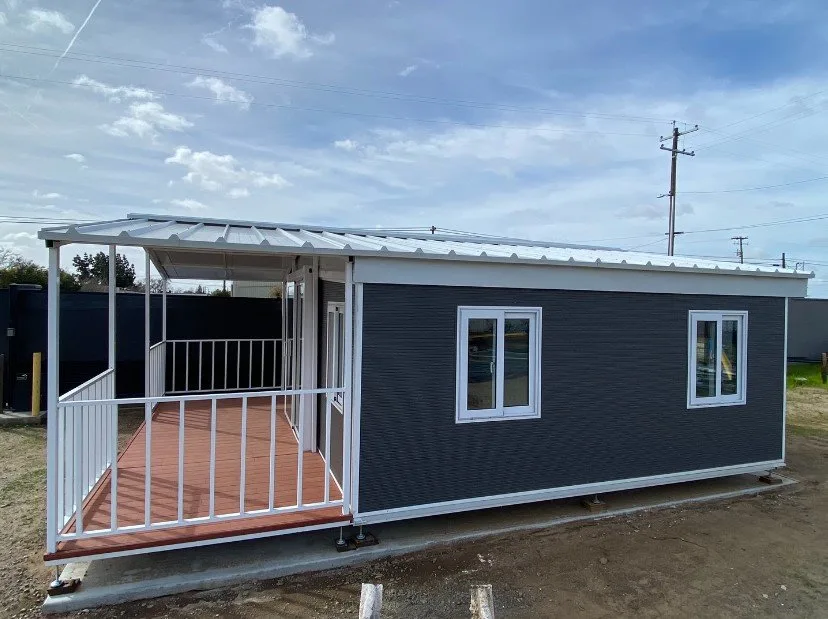

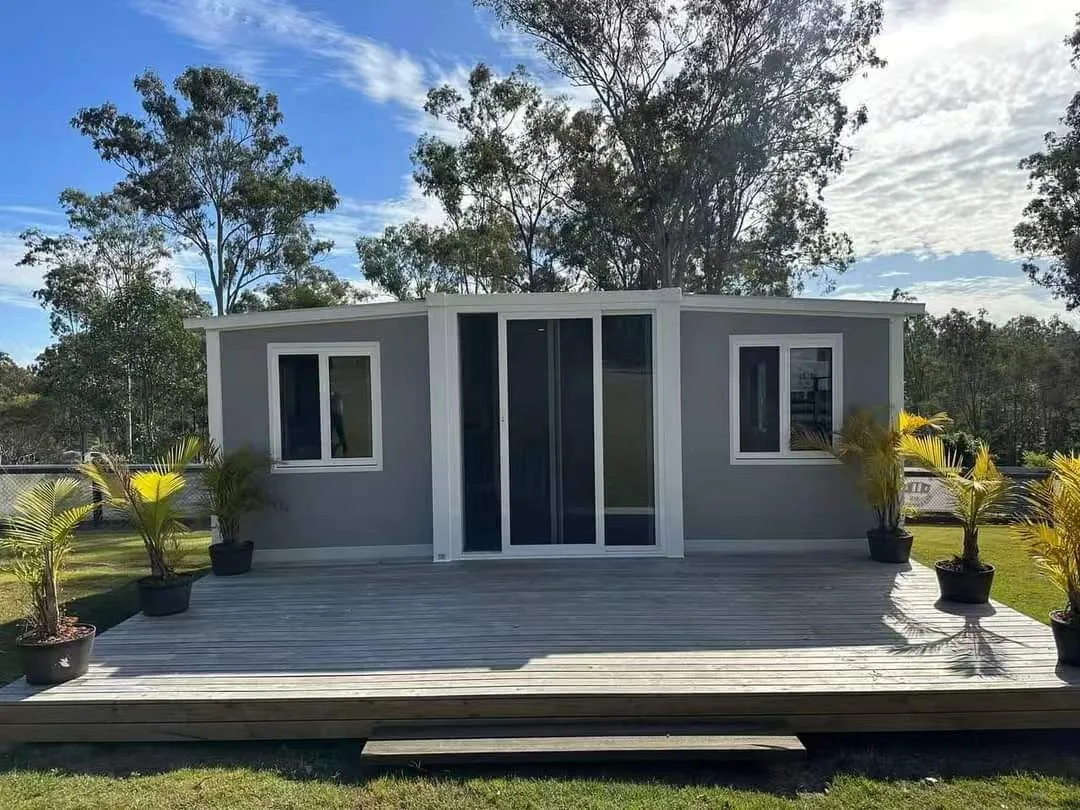

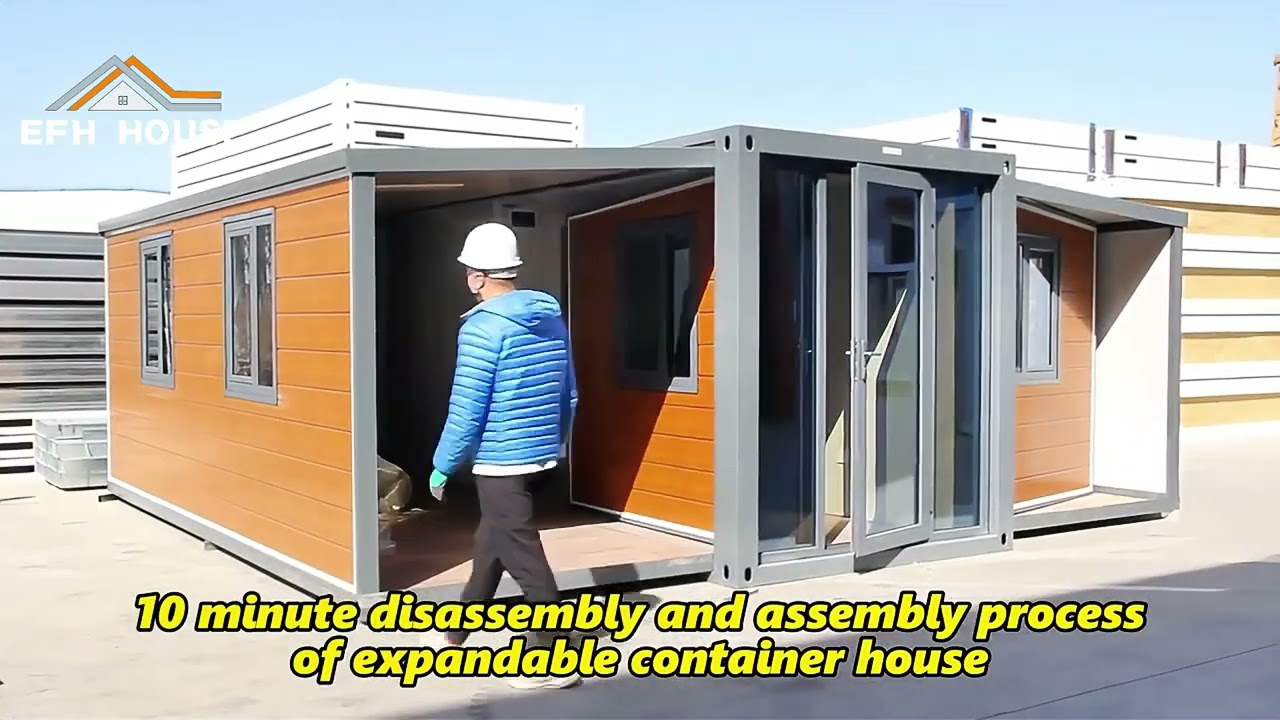

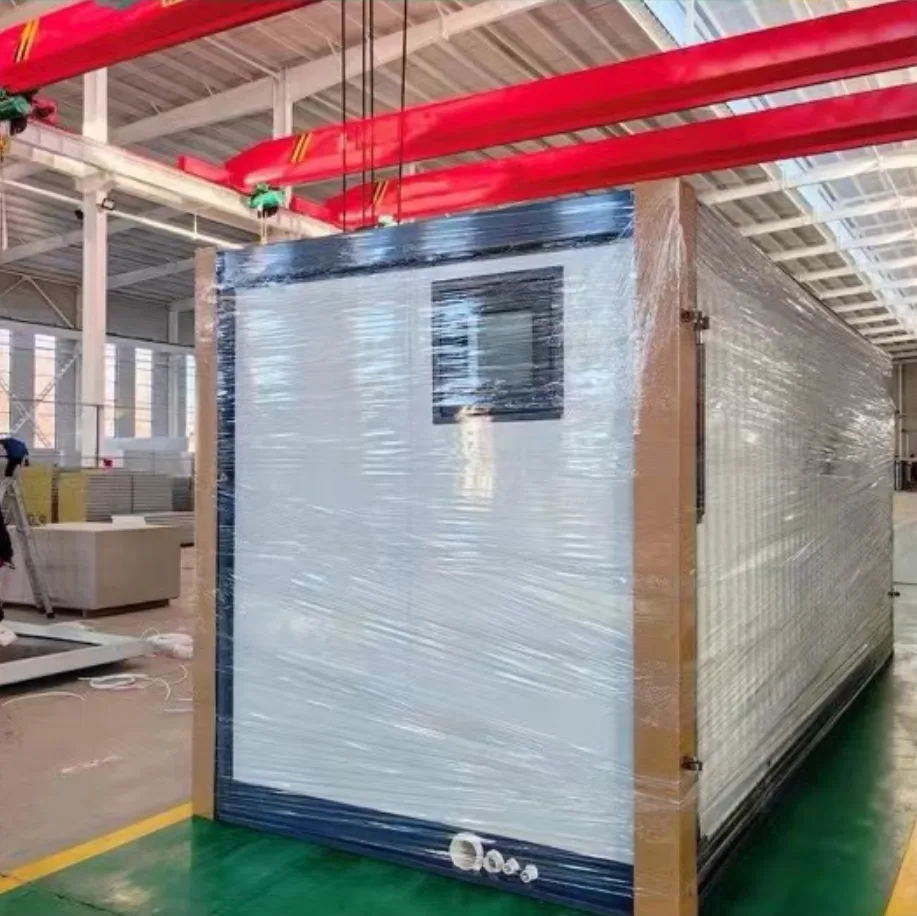

40ft Expandable Container House

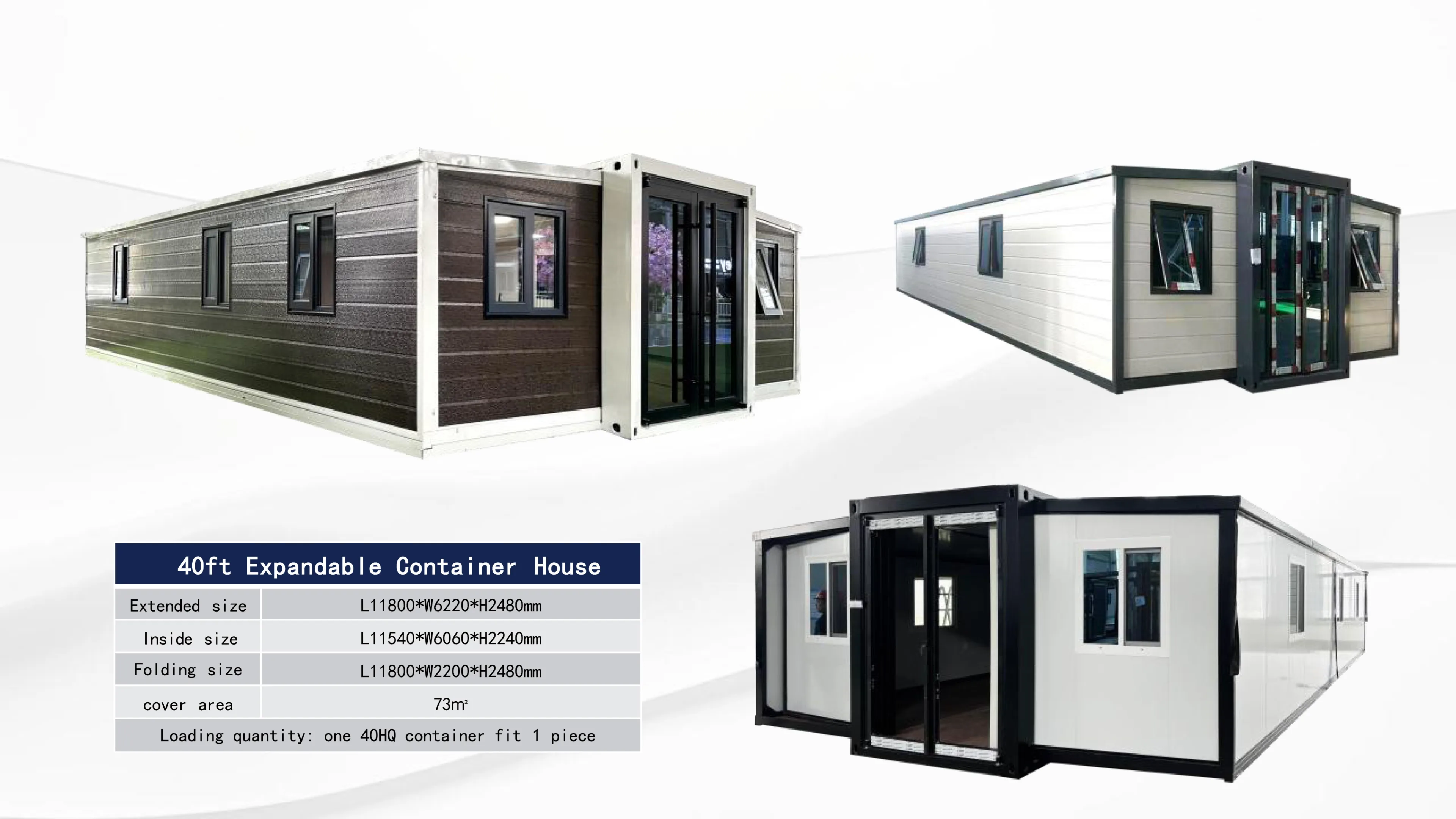

Expanded Size:L11800*W6220*H2480mm

Internal Size:L11540*W6060*H2200mm

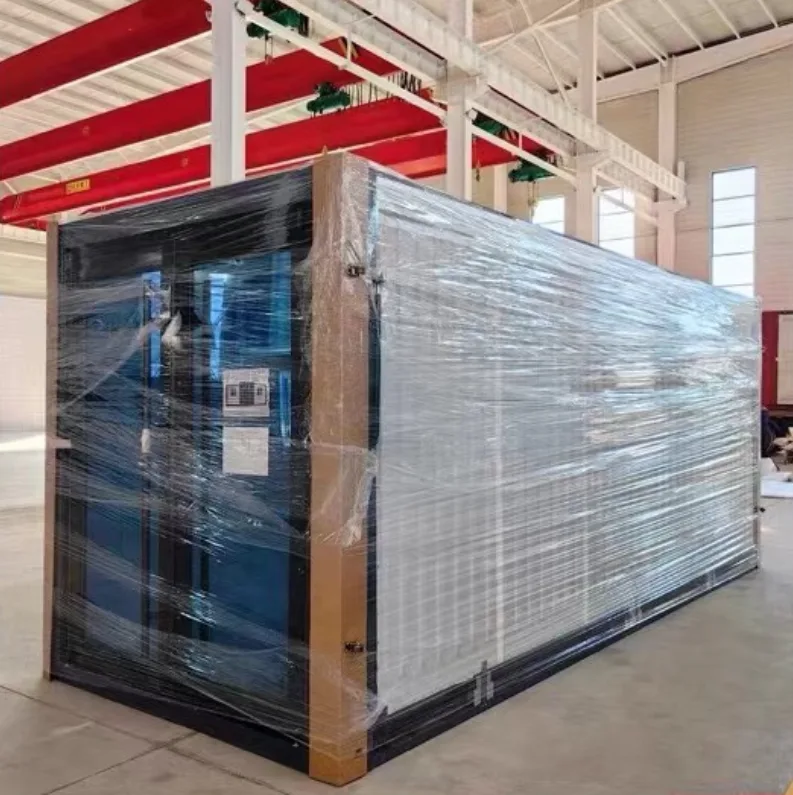

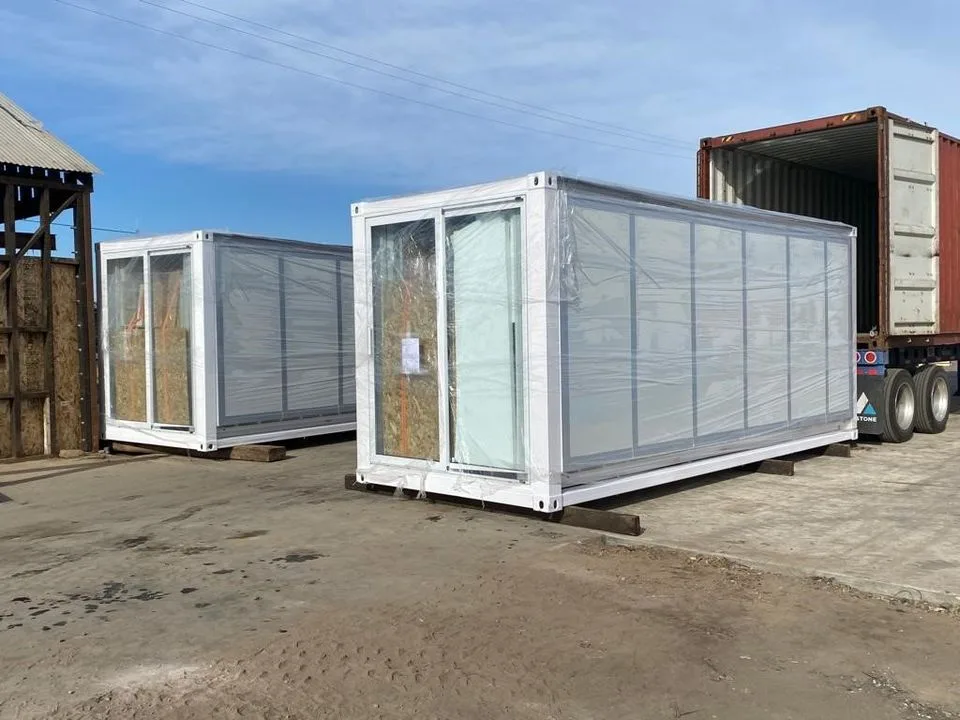

Folded Size:L11800*W2200*H2480mm

Covered area :73㎡

Main Struction

Learn more about our products

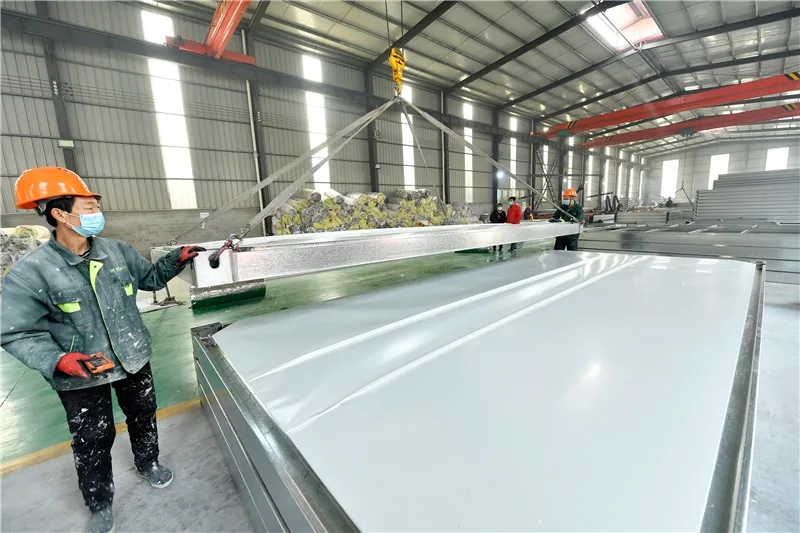

1.Wallboard:Type 950 – 65mm thick double-sided 0.3mm, EPS color steel composite panel

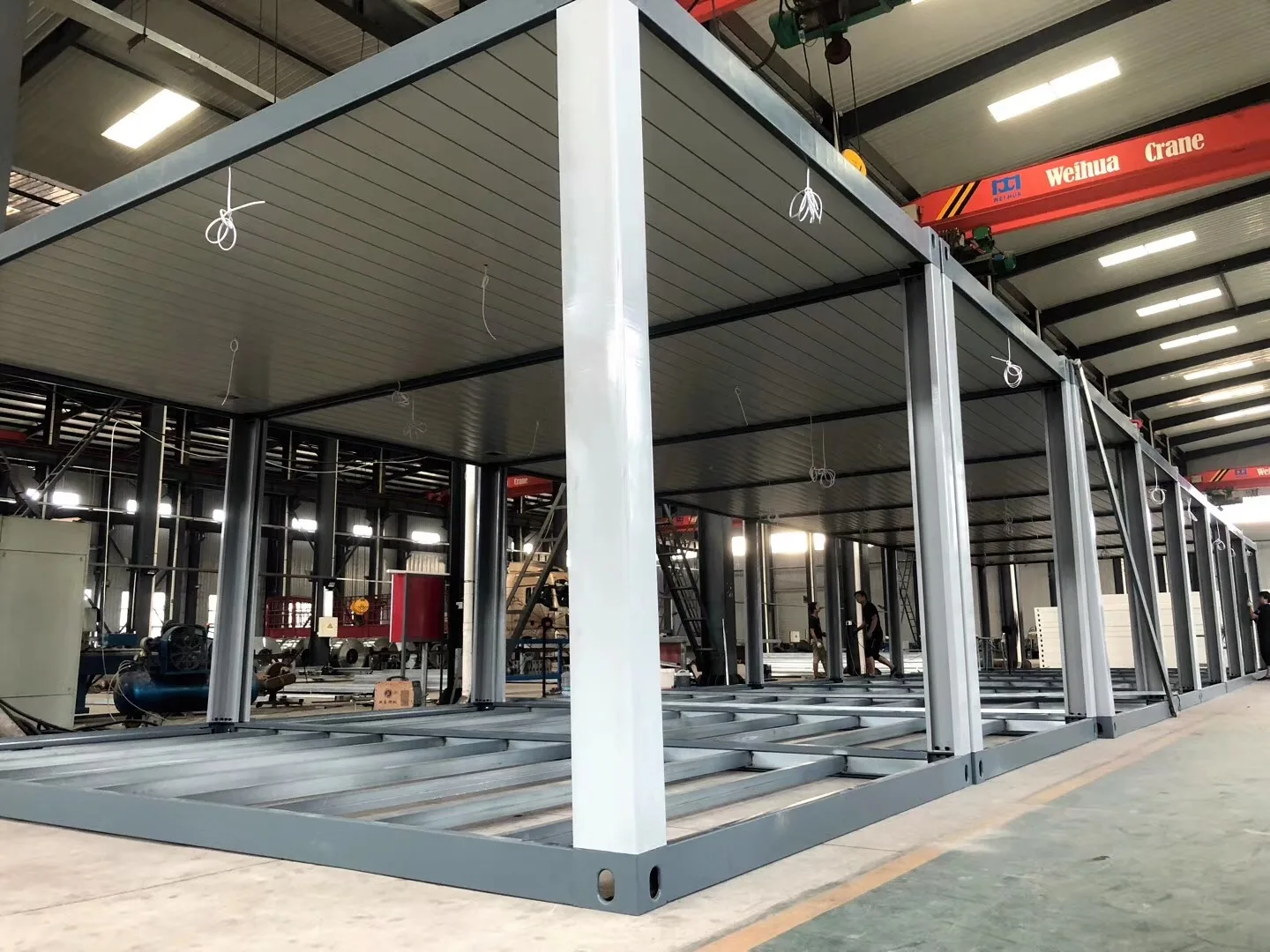

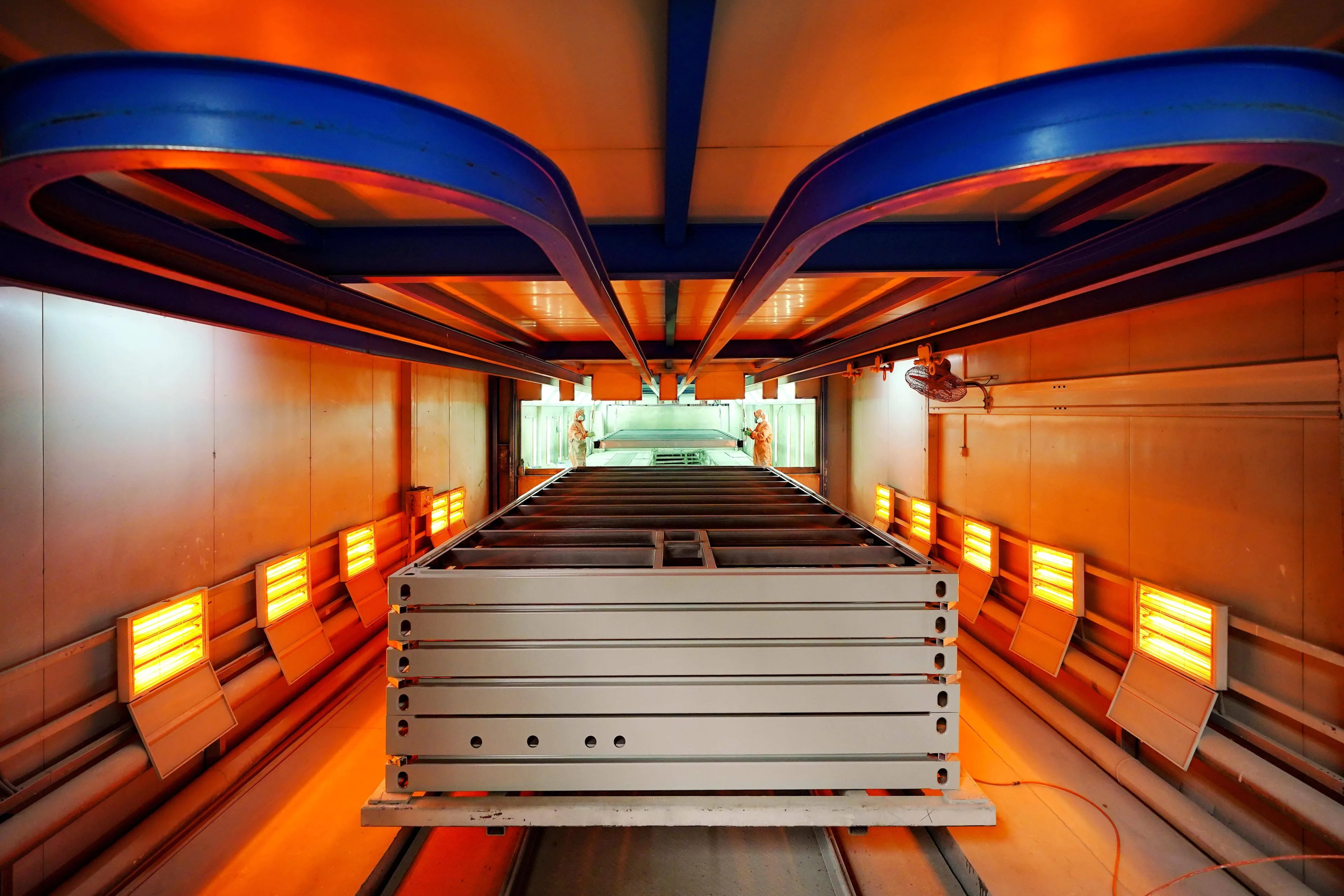

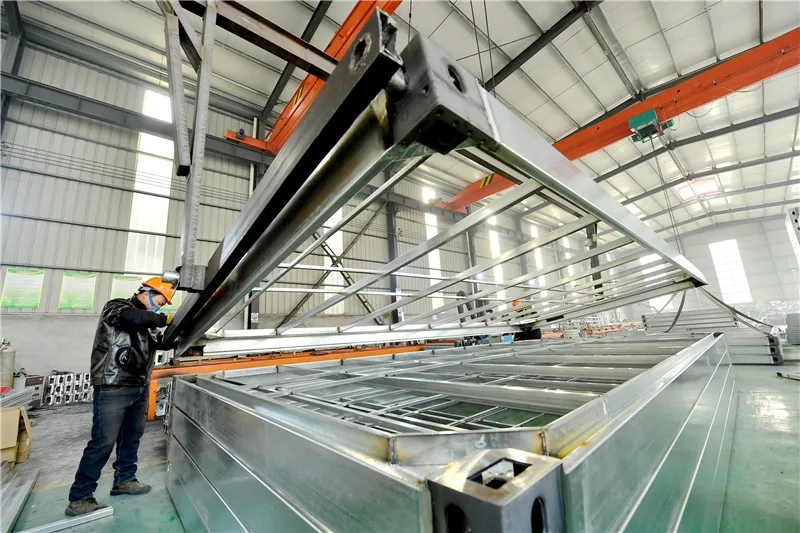

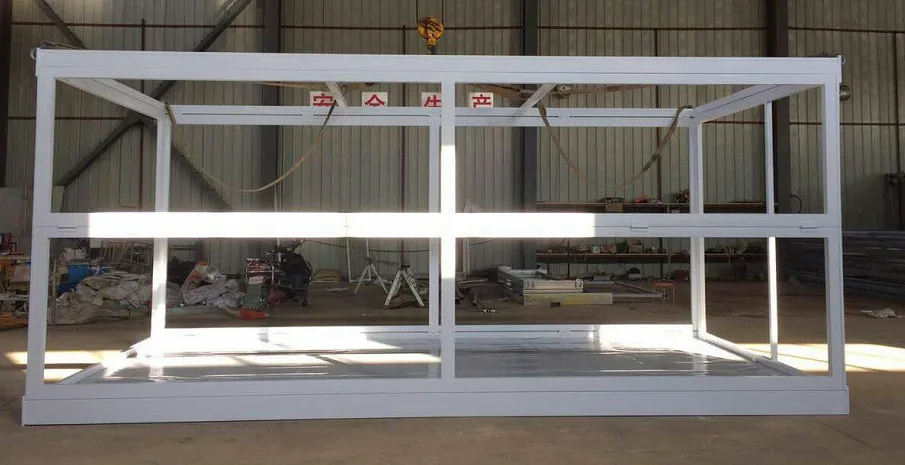

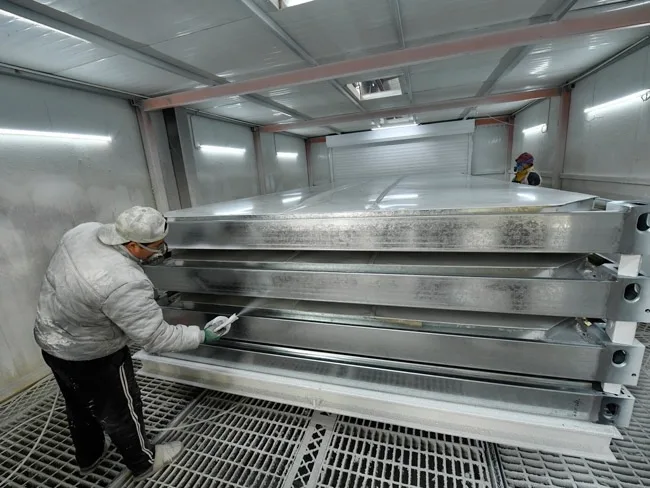

2.Frame:Overall frame protective coating,Electrostatic spraying/straight white plastic powder baking process + anti-corrosion coating

3.Folding hinge: 130mm galvanized embedded hinge

4.Ground: Bamboo glue board 18mm thick,Stone plastic floor 4mm thick

5.Main exterior top plate:Type 950-50mm thick double-sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm

6.Main interior ceiling panels:Type 950 – 50mm thick double-sided 0.3mm, EPS color steel composite panel

7.External top plates of both wings:Type 950-65mm thick double-sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm

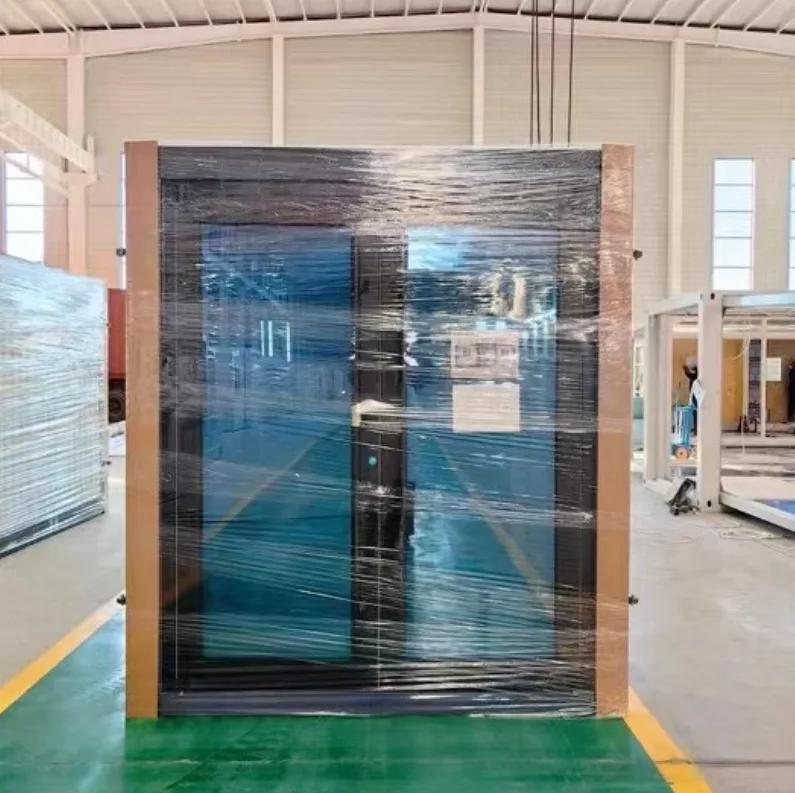

8.Windows and doors:Aluminum alloy double glass sliding window, steel fire door (optional broken bridge aluminum)

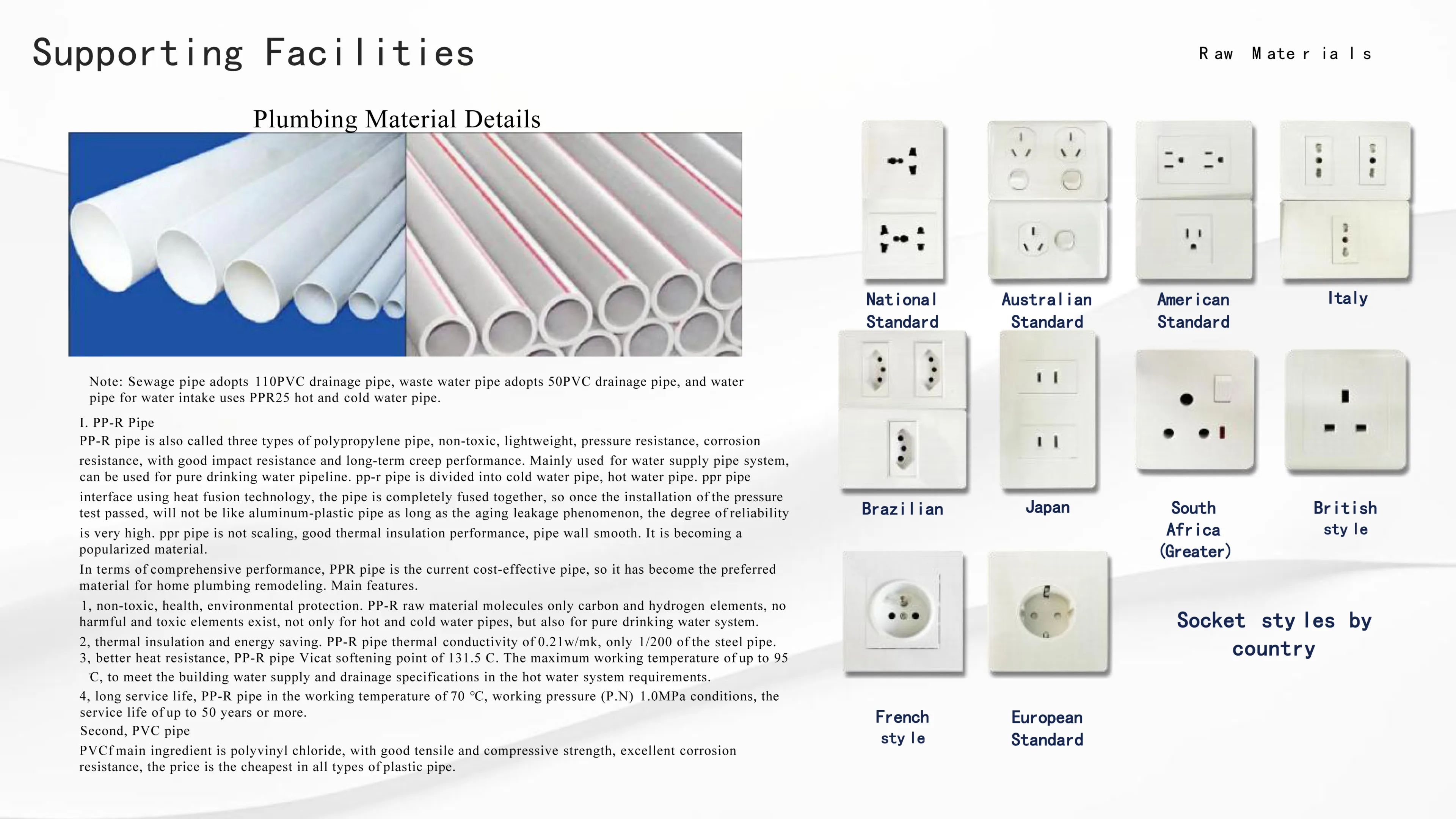

9.Electrical systems:standard can be configured according to customer requirements

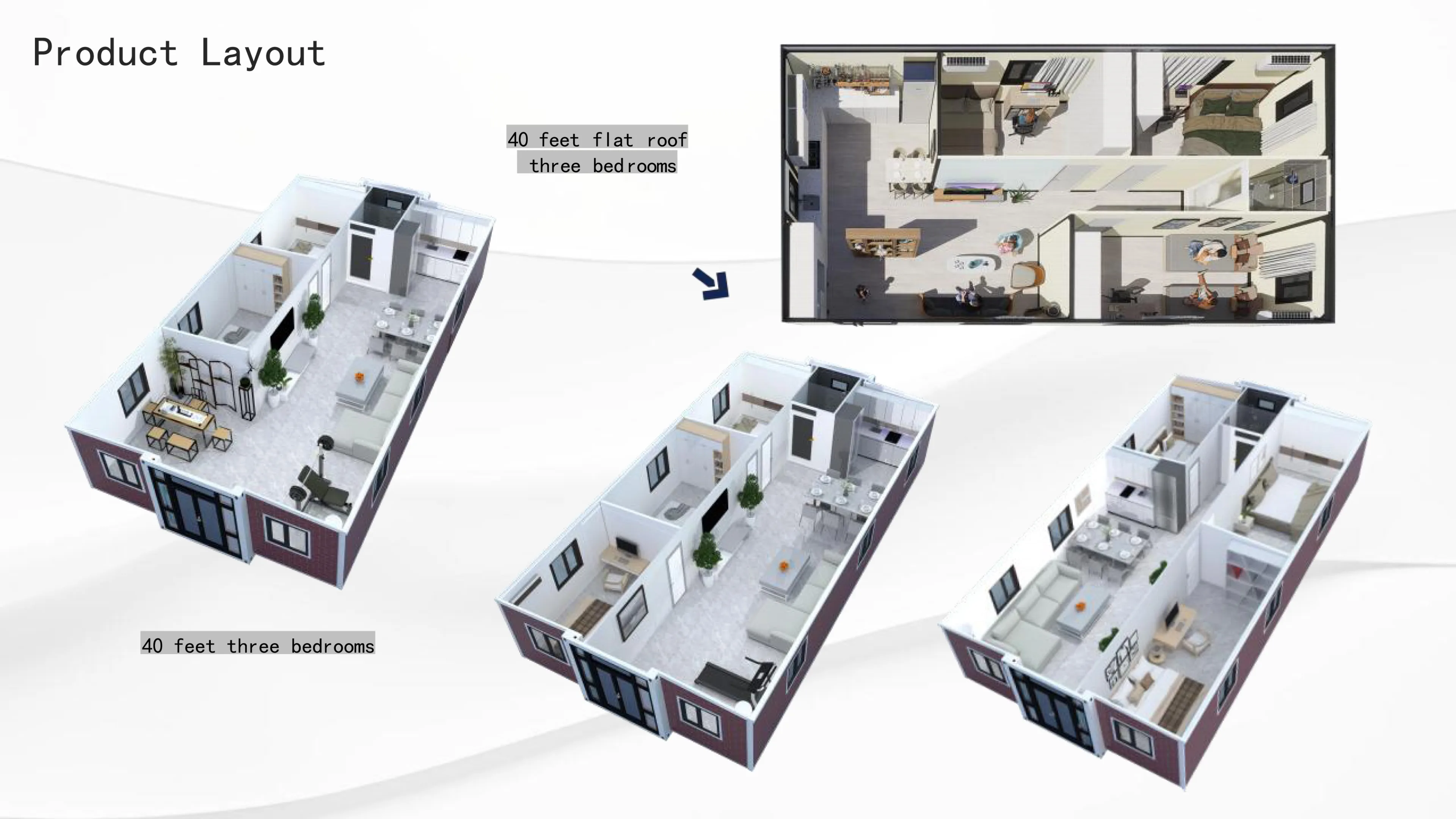

Dimension figure

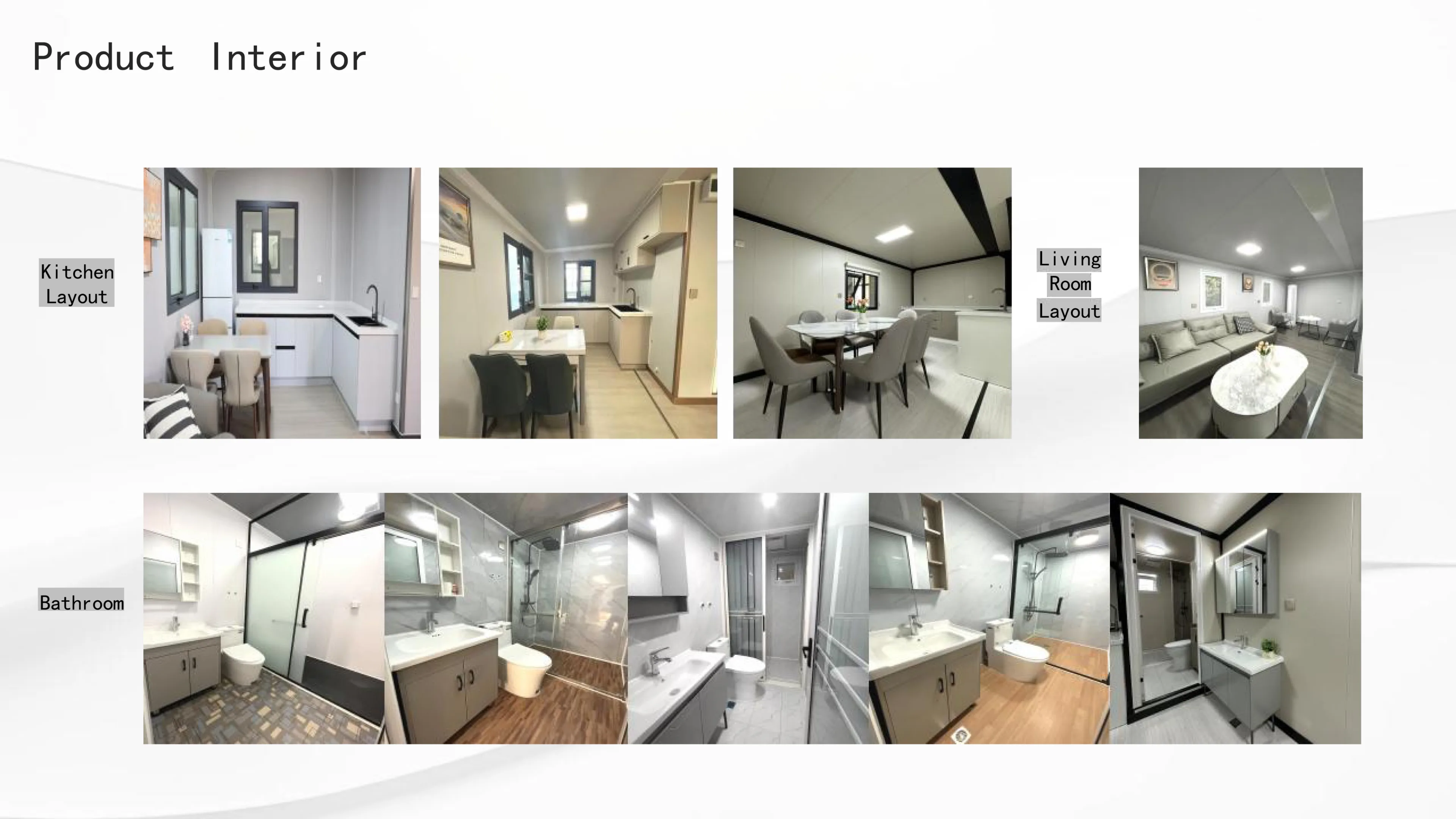

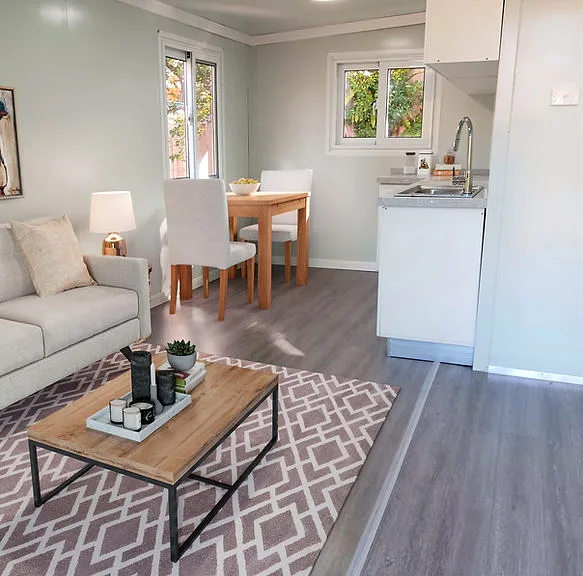

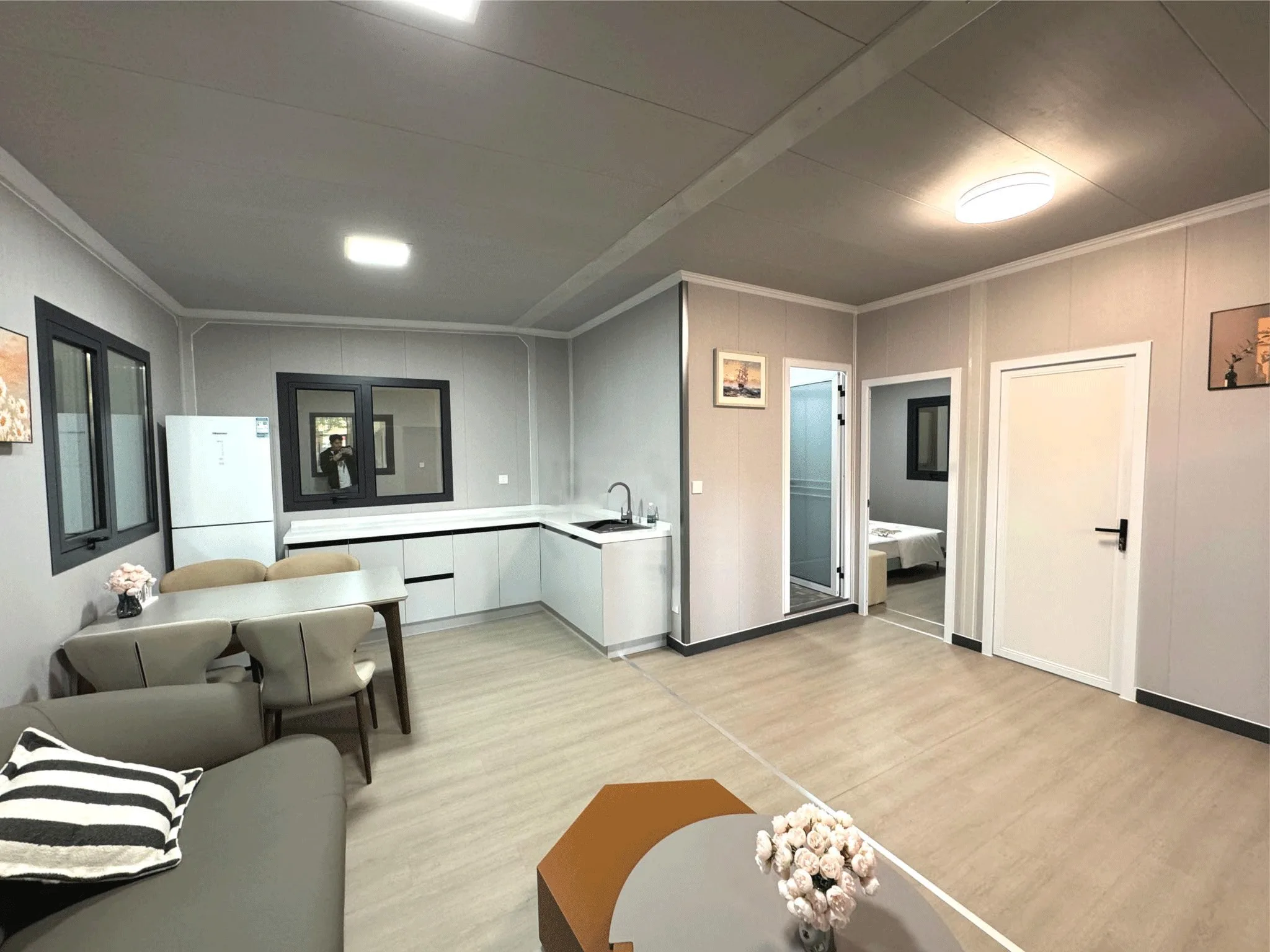

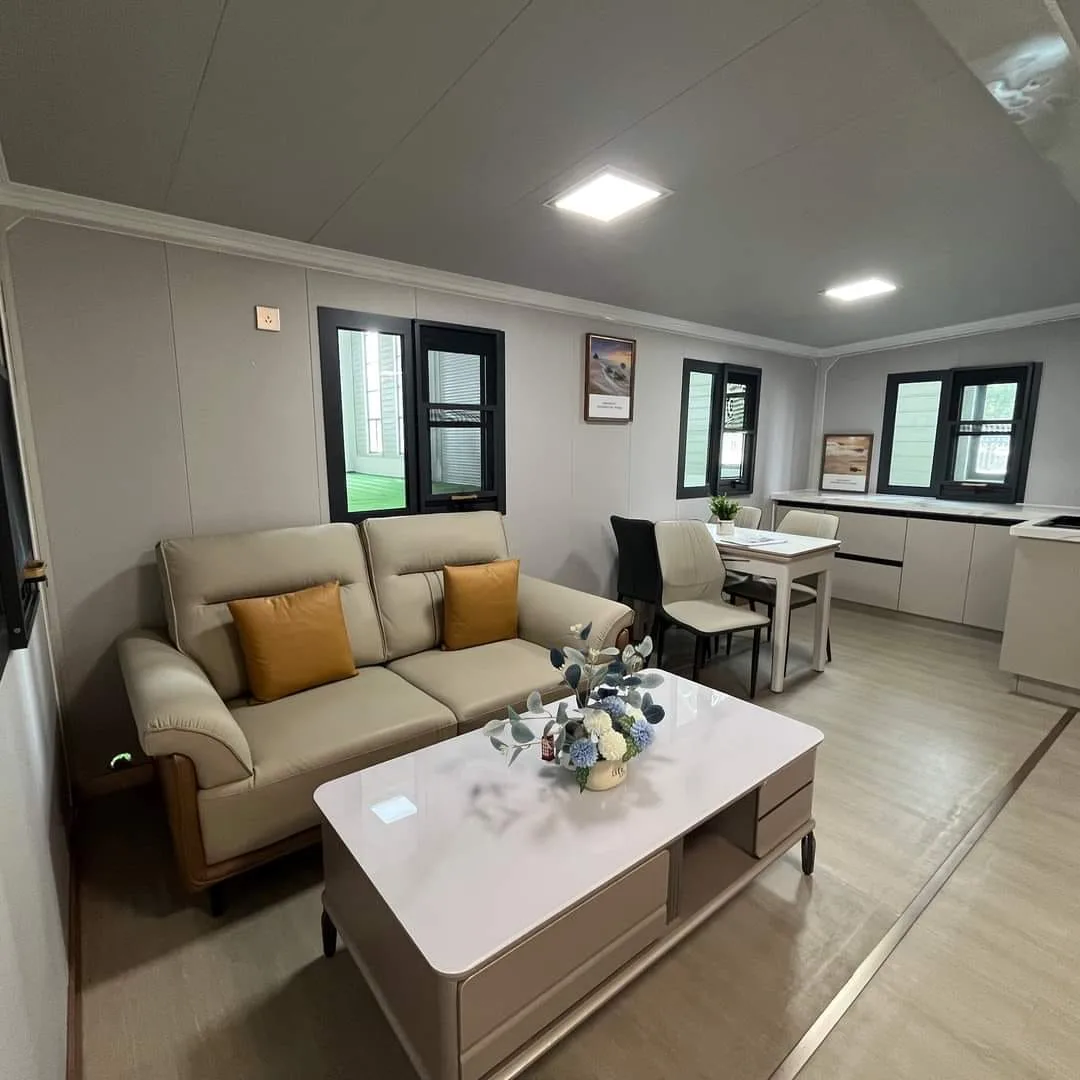

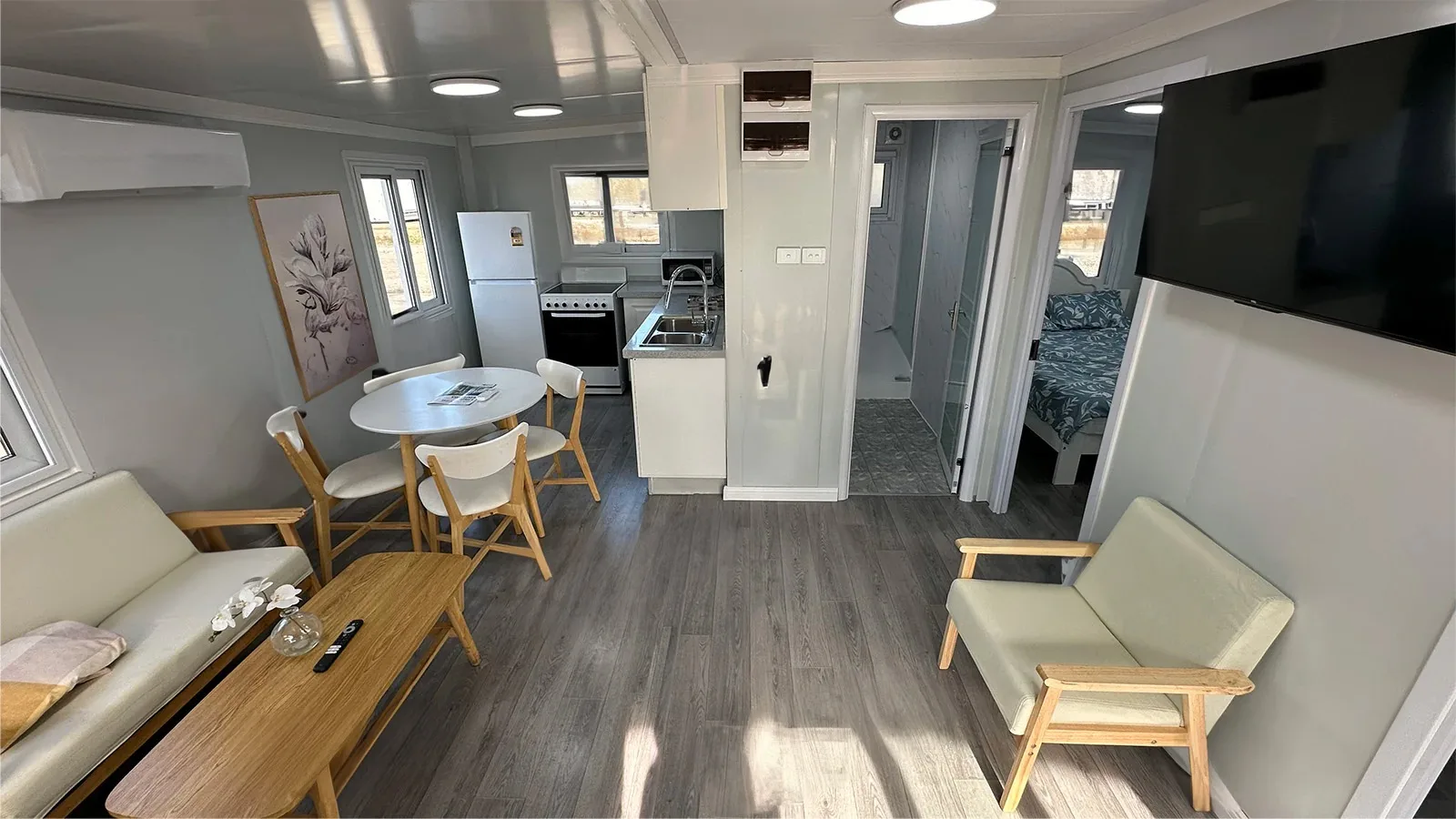

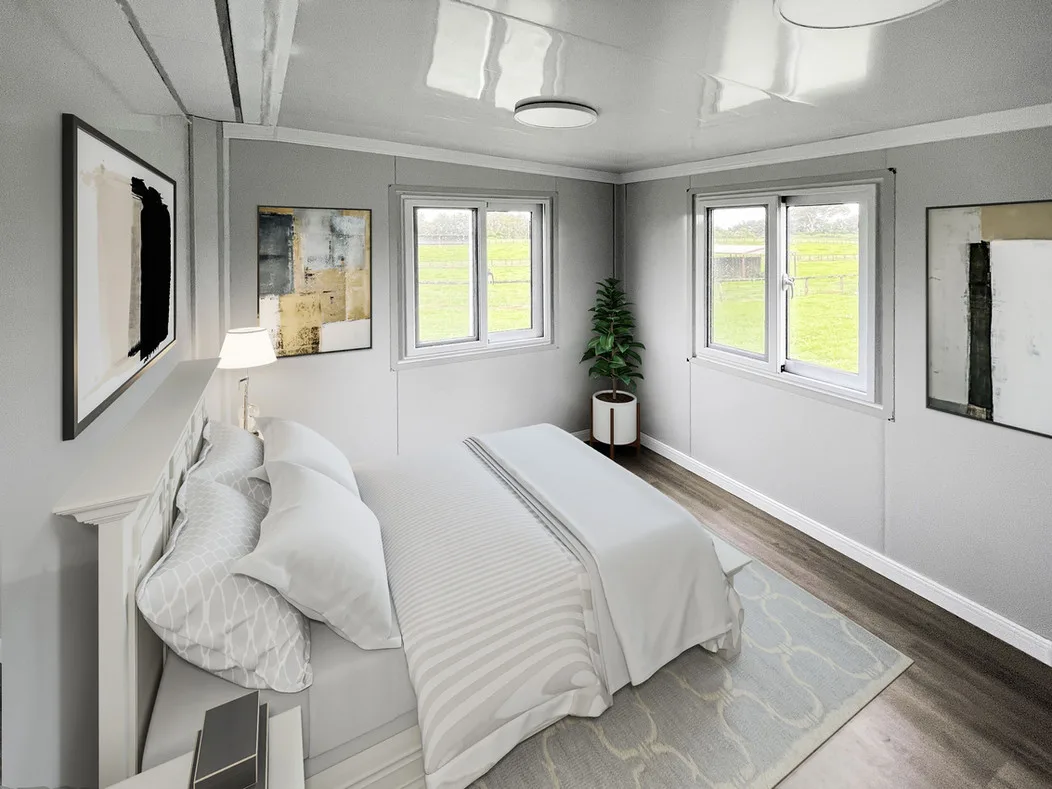

Room Tour

Payment

T/T payment Only
